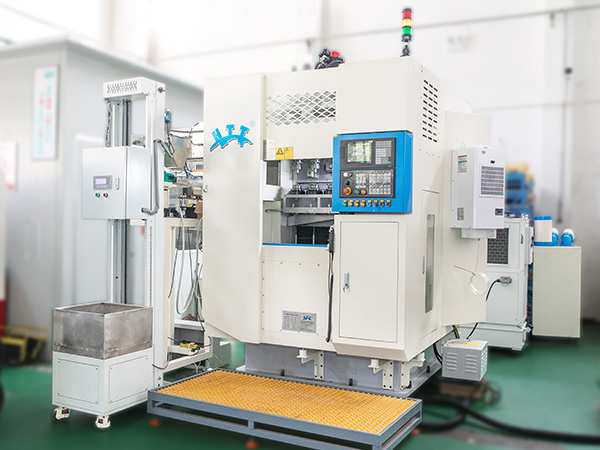

KU-series Vertical Gundrilling & Milling Center

·Drilling dia. from 0.6 mm to 4 mm
·Drilling depth up to 150 mm
Availability:
Inquire

Application：

·Oil pumps and nozzles

·Hydraulic Valve Blocks

·Gear Shafts

·Welding Contact Tips

·Nozzle

·Motor Shafts


Machined Materials:

·45# steel
·Titanium alloy materials
·High-temperature alloy structural steel


Specification:

Machine type KU4-4-150 KU25-4-500
Number of spindle 4 4
Drilling dia.(mm) φ0.6-φ4 φ5-φ25
Drilling depth(mm) 150 500
Spindle speed max.(rpm.) 18.000 5.000
CNC Control SIEMENS/FANUC/KND

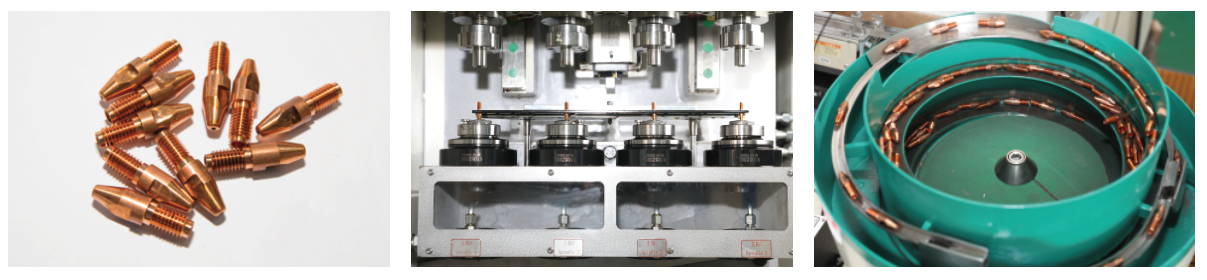

Workpiece:ku-3
