Horizontal honing machine




Product Details
Parameter
Inquiry

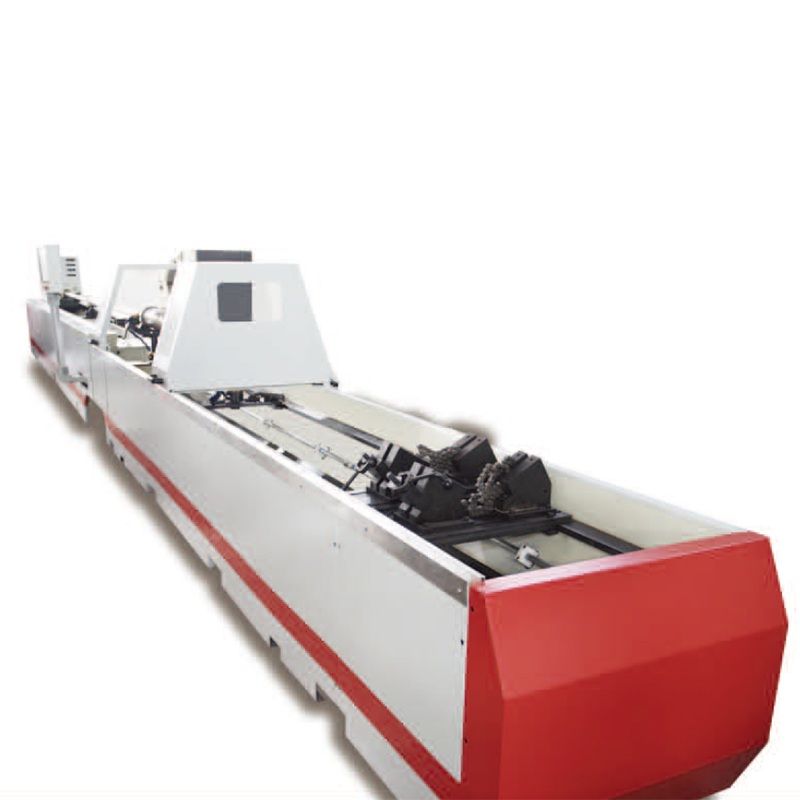

Horizontal honing machine, its axis is parallel to the work surface. General design for the single axis, on the production line can be designed into linear array. According to its structure with single axis can be divided into small horizontal honing machine and large horizontal honing machine.

The biggest characteristic of small horizontal honing machine is that a machine manufacturing cost is low. The reliability of the machine is very high. Its characteristic is that workpieces in a relatively floating state, itself-weight can’t be completely eliminated. So, small horizontal honing machine generally applicable to the diameter of less than 30 mm, weight is not more than 1, 5 Kg of the workpiece.

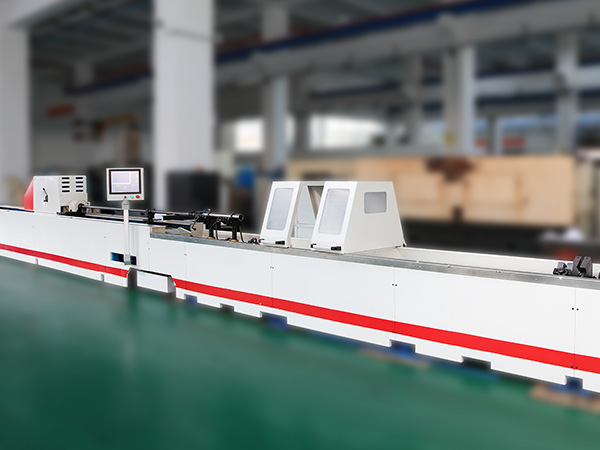

Large horizontal honing machine is designed for processing more than 1000 mm in length, maximum length up to 12 m, diameter range: 25mm up to1000 mm, its processing characteristic is honing the spindle in a relatively floating state, the weight of spindle still has certain influence on precision.

Features:
1.I.D capacity: 20 up to 1000mm
2.Honing length range: up to 12000mm
3.AC spindle motor: variable speed controlled
4.Servo Stroke speed: 1-40m/min
5.Tool Expansion system: servo motor
6.Computer control: PLC control
7.All axes are electrical driven
8.Digital stroke position indicator
9.Digital stroke speed indicator
10.Digital main spindle speed display




Specification
Type HM2000 HM3000 HM4000 HM5000 HM6000 HM8000 HM10000
Max. stroke (mm) 2.000 3.000 4.000 5.000 6.000 8.000 10.000
Dia. range (mm) φ25-1000 (standard range: φ50-400)
Cooling tank (L) 500 500 500 500 500 1.000 1.000
Machine length (mm) 6.200 8.200 10.200 12.700 14.700 18.700 22.700
Machine width (mm) 1.000 1.000 1.000 1.200 1.200 1.200 1.500
Height of machine (mm) 1.500 1.500 1.500 1.500 1.500 1.500 1.500
Weight (kg) 2.600 3.000 3.400 4.200 4.600 5.400 6.200
