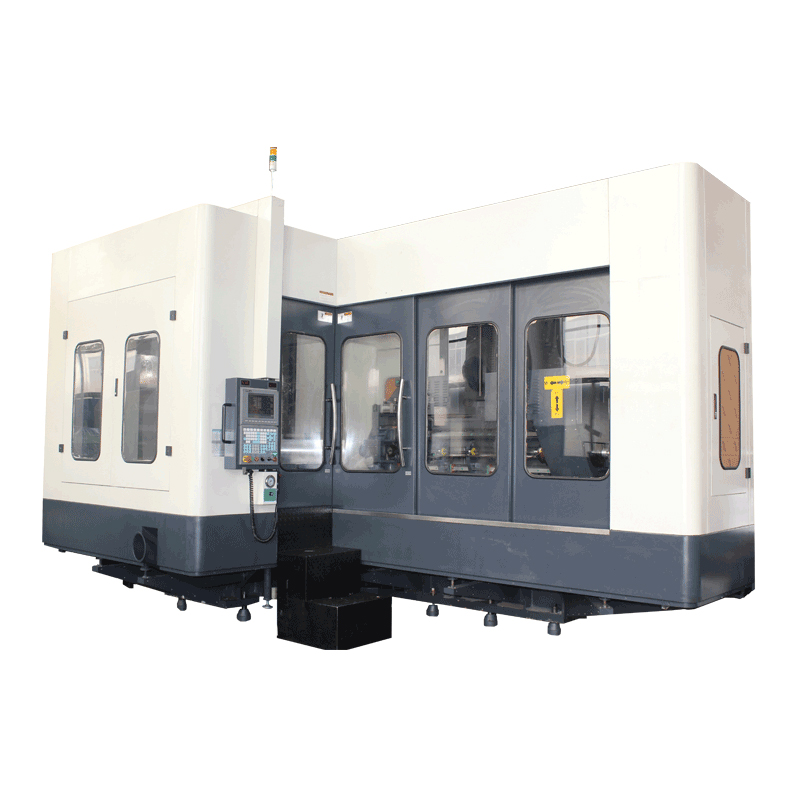

KB 1300 RT

5 CNC axes deep drilling milling machine

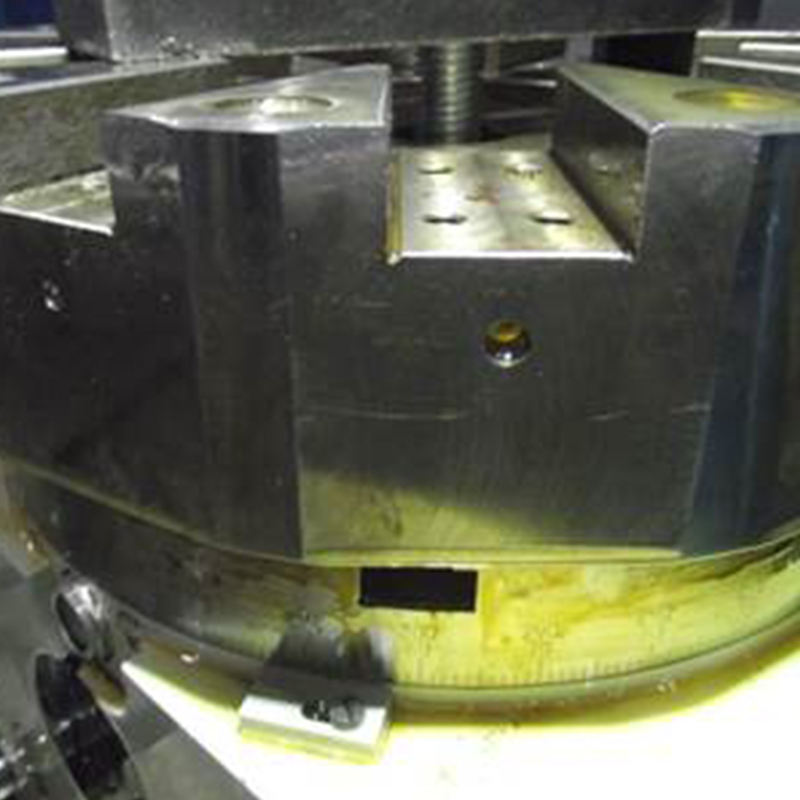

With NC rotating table
up to 1,300 mm drilling depth
Deep drilling Ø: 3 ~ 30 mm

Trivial tower
Main spindle with tool recording OZ25
Miss spindle ISO 40 (DIN 69871)
Ce fair safety redevelopment

Availability:



Inquire

Product description
parameter

Options

Process monitoring

Ethernet interface

Telediagnosis

Oil fog extrusion

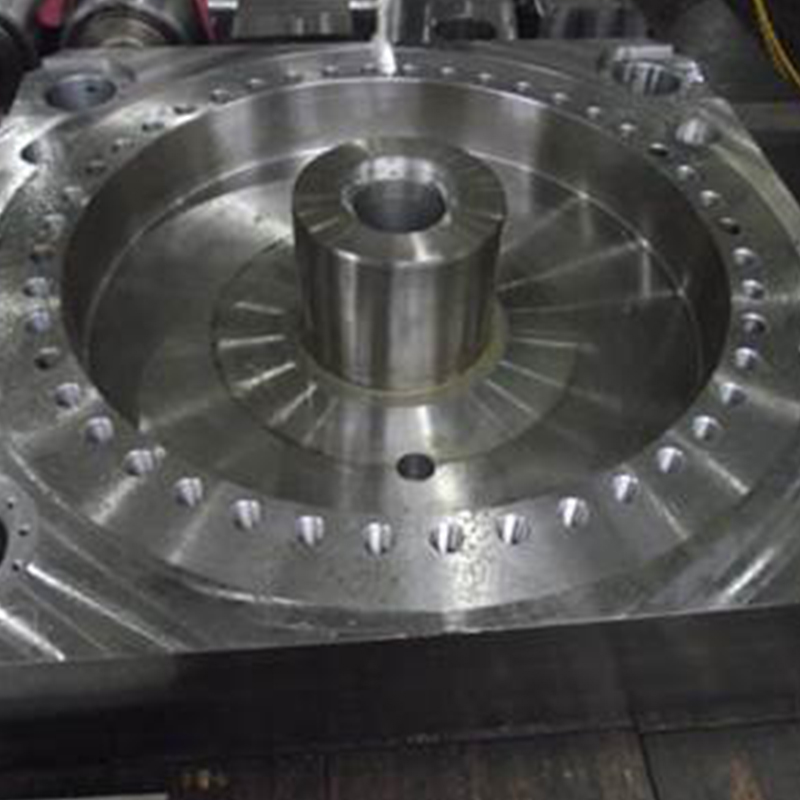

Examples

Milling output max.	mm	3 - 30
Drilling depth max.	mm	1.300
Number of spindles		2
Main spindle		ISO 40
CNC axes		X, Y, Z, W, B
Spindle speed	min-1	60 - 6,000
Table load	kg	7.000
Coolant pressure	Bear	Max. 100
CNC control	Siemens 840 D

Milling output max.	mm	3 - 30
Drilling depth max.	mm	1.300
Number of spindles		2
Main spindle		ISO 40
CNC axes		X, Y, Z, W, B
Spindle speed	min-1	60 - 6,000
Table load	kg	7.000
Coolant pressure	Bear	Max. 100
CNC control	Siemens 840 D
