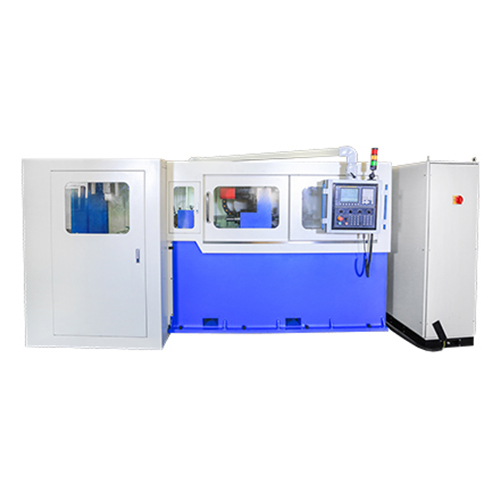

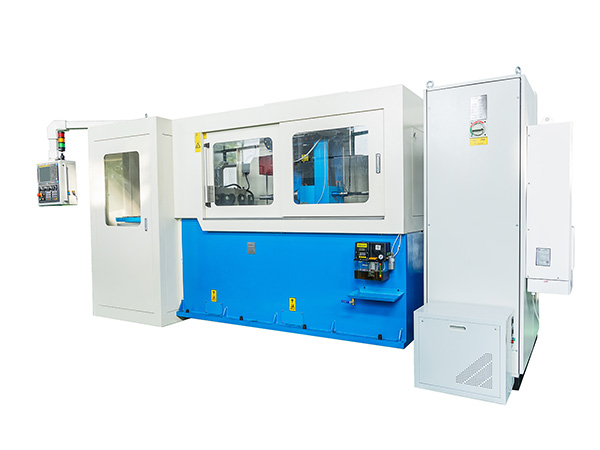

KBA series

Coordinate deep hole drilling machines
especially for bottle shapes
Drilling area of Ø 1.5 - 20 mm
Drilling depth up to 1,000 mm.

These machines can be with
1, 2 or 3 spindles, dependent
be equipped by the drilling diameter.
All machines are with
Safety rework after
CE specifications delivered.
Availability:

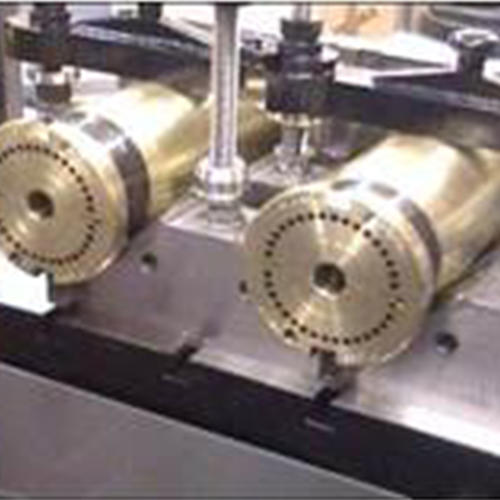

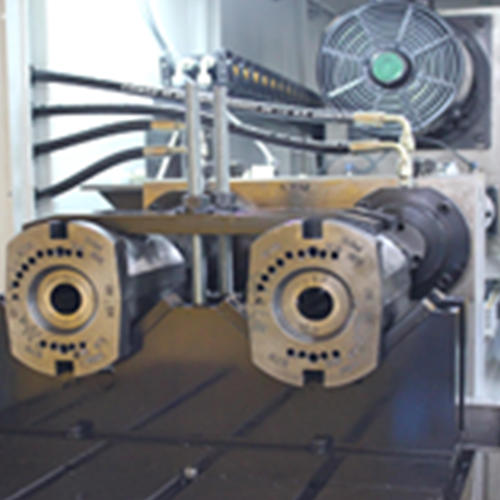

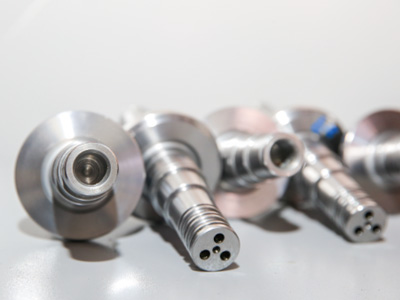

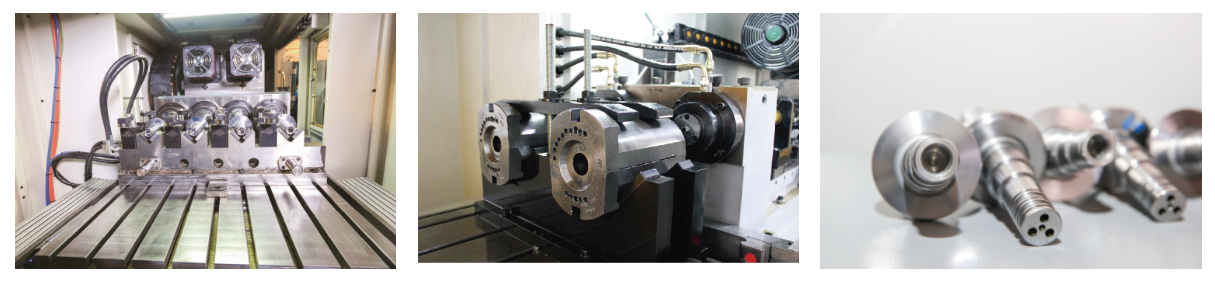

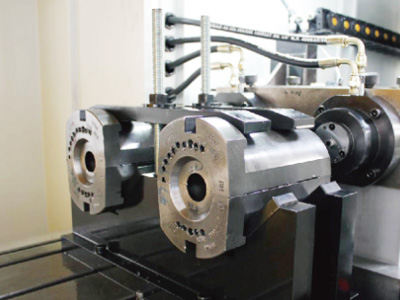

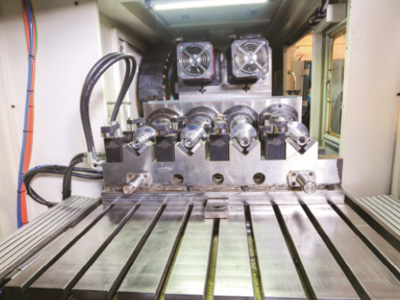

Examples


TECHNICAL DATA

Number of spindles



1, 2 or 3

Deep drilling diameter

mm



1-spinding

1.5 - 6/4 - 20/6 - 25



2-spinding

1.5 - 6/4 - 20



3-spinding

1.5 - 6/4 - 16



X-axis, table across

mm


500

Y-axis, table vertical

mm


300

Z-axis, deep drill axis

mm


500/750 / 1,000

Table area

mm


600 x 750

CNC control

Siemens or Fanuc
