Application：
Application in mould making or other cubic parts
KBR Multi-Functions:
Drilling+Milling+ Tapping+ Threading+BTA
Servo spindle motor
CNC rotating table

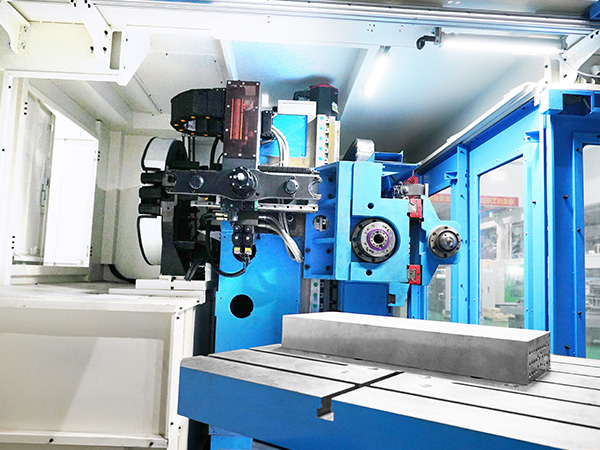

Tool magazin with place for 24 tools
Specification:
| Machine type | KBR1000 | KBR1300 | KBR1600 | |||
| Drilling dia.(mm) | φ3-φ30 | φ3-φ30 | φ3-φ38(Drill)/φ18-φ80(BTA) | |||
| Drilling depth (mm) | 1.000 | 1.300 | 1.600 | |||
| Spindle speed (rpm.) | 6.000 | 6.000 | 6.000 | |||
Spindle motor power (kW) | Drilling spindle power | 7.5/11(30min) | 7.5/11(30min) | 11/15(30min) | ||
| Milling spindle power | 11/15(30min) | 11/15(30min) | 18.5/22(30min) | |||
| X-axis table cross travel(mm) | 1.000 | 1.500 | 2.000 | 2.000 | 3.000 | |
| Y-axis drilling unit vertical (mm) | 1.000 | 1.200 | 1.500 | 1.200 | 1.500 | |
| Z-axis column travel(mm) | 800 | 1.000 | 1.000 | |||
| B-axis (tuming speed and range) (r/min) | 2,7 | 2,7 | 2,3 | |||
| A-axis: tiltingspindle (option) | +20°~- 30° | |||||
| Table size (mm) | 1000X1000 | 1800X1500 | 2000X1600 | 2000X1600 | 2400X1800 | |
| Table load (T) | 5 | 15 | 30 | |||
| Weight (T) | 20 | 25 | 30 | 35 | 37 | |
| CNC Control | SYNTEC/FANUC/Others | |||||
