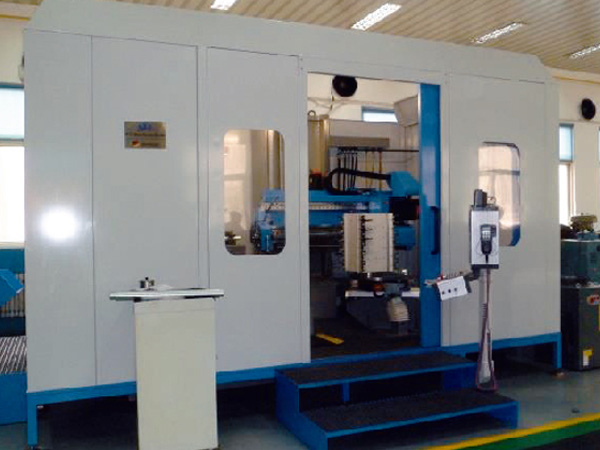

You are here: Home » Products » Special Machine » Coordinate Deep Drilling And Milling Machine for Multi-face Machining

Hot product

Share to:

· Digital AC-drives

· 3D Path Control

• Hand-held portable controller

• C.T.S.- Coolant through spindle

• CE- Compliant Protection Housing

Options：

·NC Rotary table

·Drilling-/ Milling Unit, swivel-mounted

·CNC-controlled

·Tool changer

·Integrated Tool monitoring

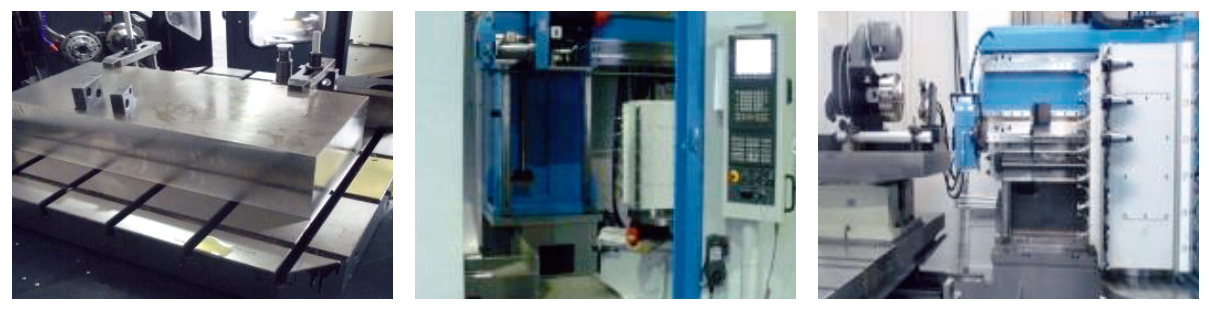

germany machine-5

Specification:

Max. drilling capacity	mm	6 - 32
Max. drilling depth in one stroke	mm	1.100
Number of spindle		1
Main spindle		ISO 40
CNC Axis		X, Y, Z, W, (B, A, C)
Spindle speed directly programmable	rpm.	60 - 6.000
Table load	kg	5.000
Coolant pressure	Bar	Max. 100
CNC Control	SIEMENS / FANUC / HEIDENHAIN
